PF60 / PF80 · PROFILE & FRAME SERIES
PF60 / PF80 Aluminum Profile & Sign Frame Bending Machines
Form aluminum profiles for sign frames, shaped lightboxes, mirror frames, and related applications. Choose PF60 for single-direction finished shapes or PF80 when both single- and bidirectional shapes are required.
Side height — PF60 and PF80
Material thickness
Single-direction / single- and bidirectional shape forming
Minimum arc-radius threshold — confirm by a trial roll on the profile
BUYER DECISION & FIT
PF60 vs. PF80: Which One Fits Your Shop?
Start with application fit, then confirm the exact material, geometry, tooling, and delivery scope in the quotation. For series choice and file preparation, review Material Guide and File Preparation before sending your profile drawing. For the job that lists this series, see Sign Frame and Lightbox Profile Bending. The Channel Letter Bender Price Comparison lists documented limits for all 11 models.
Best for
Aluminum-profile picture frames, mirror frames, shaped lightboxes, decorative strips, and other sign-frame work within the documented profile range.
Choose by finished-shape direction
Choose PF60 for single-direction shapes. Choose PF80 when the finished profile path requires single- and bidirectional forming; then confirm cross-section, alloy, wall thickness, radius, and roller tooling.
Not ideal for
Conventional channel-letter returns made from flat metal or mixed materials. Use a channel-letter series selected by material and process instead.
SPECIFICATIONS
PF60 vs. PF80
The defining model difference is shape direction: PF60 is for single-direction shapes, while PF80 supports both single- and bidirectional shapes. Highlighting marks a difference, not a superior model. The mechanism rows pair each model's documented design features where the source terminology is not identical; use them as a comparison aid rather than proof of equivalent functions. How to read side height is on the Channel Letter Bender Price Comparison.
PF60
- Shape-forming directionMODEL DIFFERENCE
- Single-direction shapes
- Side height
- 8–120 mm
- Main applicationsMODEL DIFFERENCE
- Mirror frames, picture frames, and similar aluminum profiles
- Equipment powerMODEL DIFFERENCE
- 2000 W
- Machine sizeMODEL DIFFERENCE
- 1100 × 700 × 1400 mm
- Machine weightMODEL DIFFERENCE
- 450 kg
- Drive configurationMODEL DIFFERENCE
- Servo-motor drive
- Shape-path handlingMODEL DIFFERENCE
- Single-direction forming with closed-loop control
- Tool-change designMODEL DIFFERENCE
- Replaceable-tip design
- Material guidance and compressionMODEL DIFFERENCE
- Guided material-feed system
- Minimum arc-radius threshold
- 50 mm nominal threshold; confirm final profile and tooling fit
- Material thickness
- 0.6–1.2 mm
- Length accuracy
- 0.1 mm/m
- Voltage
- 220 V
- Compressed air
- Does not use compressed air.
- Supported file formats
- DXF
- Included computer
- Ships with a computer; software installed and parameters set.
PF80
- Shape-forming directionMODEL DIFFERENCE
- Single- and bidirectional shapes
- Side height
- 8–120 mm
- Main applicationsMODEL DIFFERENCE
- Frames, shaped lightboxes, decorative strips, and custom profiles
- Equipment powerMODEL DIFFERENCE
- 2200 W
- Machine sizeMODEL DIFFERENCE
- 2800 × 850 × 1200 mm
- Machine weightMODEL DIFFERENCE
- 330 kg
- Drive configurationMODEL DIFFERENCE
- Four servo motors and drives
- Shape-path handlingMODEL DIFFERENCE
- Bidirectional independent intelligent path recognition
- Tool-change designMODEL DIFFERENCE
- One-pull roller replacement
- Material guidance and compressionMODEL DIFFERENCE
- Whole-plate spring compression
- Minimum arc-radius threshold
- 50 mm nominal threshold; confirm final profile and tooling fit
- Material thickness
- 0.6–1.2 mm
- Length accuracy
- 0.1 mm/m
- Voltage
- 220 V
- Compressed air
- Does not use compressed air.
- Supported file formats
- DXF
- Included computer
- Ships with a computer; software installed and parameters set.
MODEL-SPECIFIC EVIDENCE
See the Forming Path and a Sample
These images come from the PF60 and PF80 product materials and show the documented machine mechanisms.

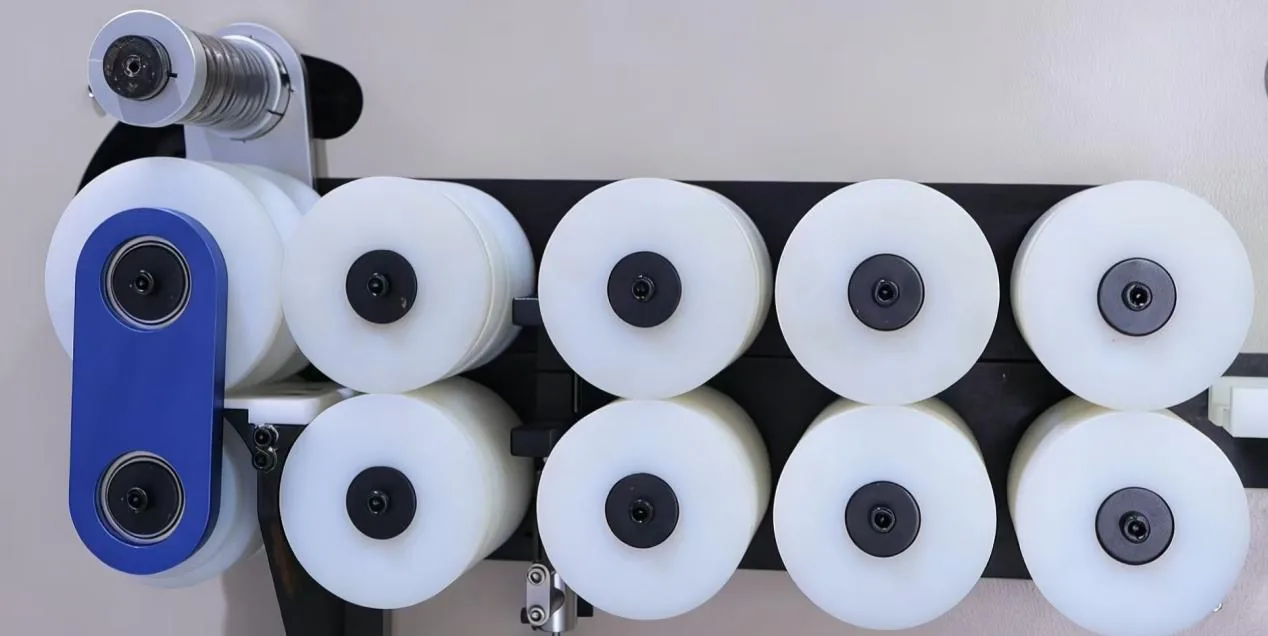

Multi-roller forming path
The model-specific image shows the roller assembly used to guide and form an aluminum profile. Roller tooling must be matched to the actual cross-section and confirmed in the quotation.

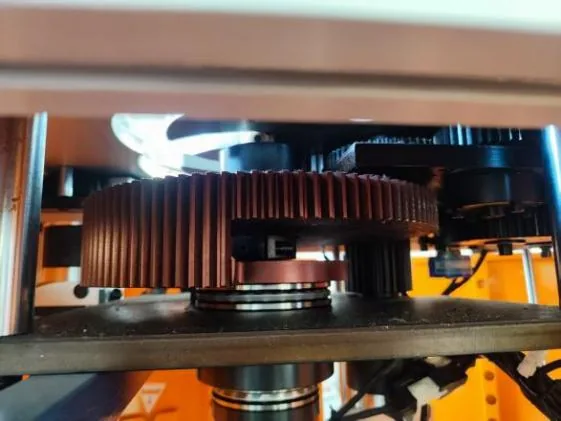

Gear transmission detail
The available product documentation identifies a precision gear-drive system. This model-specific image documents the gear train rather than using a generic mechanism illustration.
Formed profile sample
The source photo shows a heart-shaped aluminum-profile frame. It is application evidence, not a tolerance guarantee for every profile; send your own drawing for a feasibility check and recorded test.
DELIVERY AND SUPPORT
Delivery, Warranty & Training
Warranty, training, dispatch, and export terms are line-wide and are written on Why Us.
Delivery
Standard configurations are prepared for dispatch on the schedule written in your quotation.
Warranty and CE marking
The 1-year warranty, lifetime technical support, and CE marking are line-wide; details are on Why Us.
Training and OEM/ODM
Training is at the factory, on site, or remote; standard OEM starts from 1 unit on a documented SENQ series, and ODM requests go through engineering review (OEM / ODM).
PF SERIES FAQ
Questions to Answer Before You Order
What is the main difference between PF60 and PF80?
PF60 is for single-direction shapes. PF80 can form both single-direction and bidirectional shapes. Shape-forming direction describes the finished profile path, not the machine feed direction. Choose the starting model by the finished shape direction first, then confirm the profile cross-section, alloy, wall thickness, radius, and roller tooling.
What side height do PF60 and PF80 support?
Both models support a side height of 8–120 mm. Send the actual profile cross-section and finished shape for tooling and model confirmation. How to read side height is on the Channel Letter Bender Price Comparison.
Which material is documented, and when should we compare another series?
The current product material documents aluminum profiles from 0.6 to 1.2 mm thick. Compare AP130 for dedicated aluminum profile, flat-aluminum, folding-coil, and Channelume channel-letter work up to 130 mm, or MM for a broader multi-material channel-letter platform. Send the alloy and cross-section because thickness alone does not establish tooling or series suitability.
What should we send for a feasibility review?
Send a representative file plus the profile cross-section, alloy, wall thickness, dimensions, and required radius. SENQ will review feasibility and confirm any required material or tooling validation in the quotation.
