FM130 / FM220
Stainless Steel Channel Letter Bender
Feed, slot, bend, and punch documented stainless steel, galvanized sheet, iron, and flat aluminum. Choose FM130 for a 20–130 mm side height or FM220 when the required side height extends to 220 mm.
FM130 / FM220 side height
Material thickness
Minimum bending radius
Length accuracy
BUYER DECISION & FIT
FM130 vs. FM220: Which One Fits Your Shop?
Start with application fit, then confirm the exact material, geometry, tooling, and delivery scope in the quotation. For series choice and file preparation, review Material Guide and File Preparation before sending your metal details and production file. General return bending that lists this series is on Standard Channel Letter Bending. The Channel Letter Bender Price Comparison lists documented limits for all 11 models.
Best for
Flat stainless steel, galvanized sheet, iron, and flat aluminum returns that use the documented feeding, slotting, bending, and punching workflow.
Choose by side height
Choose FM130 for a 20–130 mm side height or FM220 for a 20–220 mm side height, then confirm metal grade, finish, thickness, radius, and tooling.
Not ideal for
Profile-frame forming, channelume-focused roller feeding, or a dedicated flat-aluminum tooth-notching and edge-folding workflow.
SPECIFICATIONS
FM130 vs. FM220
The available product specifications document side height as the stated model difference. Other drive, cutting, punching, utility, size, and weight values below are listed the same for both models; confirm the final supplied configuration in the quotation. Highlighting marks a documented difference, not a superior model. How to read side height is on the Channel Letter Bender Price Comparison.
FM130
- Side heightMODEL DIFFERENCE
- 20–130 mm
- Application materials
- Stainless steel, galvanized sheet, iron, and flat aluminum
- Minimum bending radius
- R≥5 mm
- Material thickness
- 0.3–1.2 mm
- Length accuracy
- 0.1 mm/m
- Feeding system
- Mechanical-gripper feeding
- Slotting system
- Servo planer slotting
- Bending system
- Servo dual-blade alternating bending
- Punching system
- Standard automatic punching
- Total power
- 2000 W
- Machine size
- 2600 × 800 × 1550 mm
- Net weight
- 400 kg
- Power supply
- AC 220 V
- Working air pressure
- 0.4–0.8 MPa
- Supported file formats
- DXF, AI, PLT
- Included computer
- Ships with a computer; software installed and parameters set.
FM220
- Side heightMODEL DIFFERENCE
- 20–220 mm
- Application materials
- Stainless steel, galvanized sheet, iron, and flat aluminum
- Minimum bending radius
- R≥5 mm
- Material thickness
- 0.3–1.2 mm
- Length accuracy
- 0.1 mm/m
- Feeding system
- Mechanical-gripper feeding
- Slotting system
- Servo planer slotting
- Bending system
- Servo dual-blade alternating bending
- Punching system
- Standard automatic punching
- Total power
- 2000 W
- Machine size
- 2600 × 800 × 1550 mm
- Net weight
- 400 kg
- Power supply
- AC 220 V
- Working air pressure
- 0.4–0.8 MPa
- Supported file formats
- DXF, AI, PLT
- Included computer
- Ships with a computer; software installed and parameters set.
MODEL-SPECIFIC EVIDENCE
See the Feed, Bend, and a Finished Sample
These images come from the FM130 and FM220 product materials and show the documented machine mechanisms.

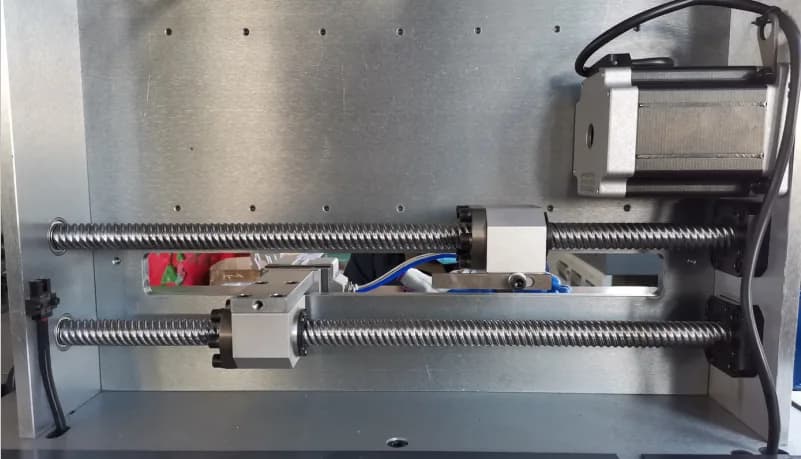

Dual-screw feed mechanism
This model-specific image shows the paired lead screws in the feed mechanism. The product specifications describe mechanical-gripper feeding; confirm the final feed configuration in the quotation.

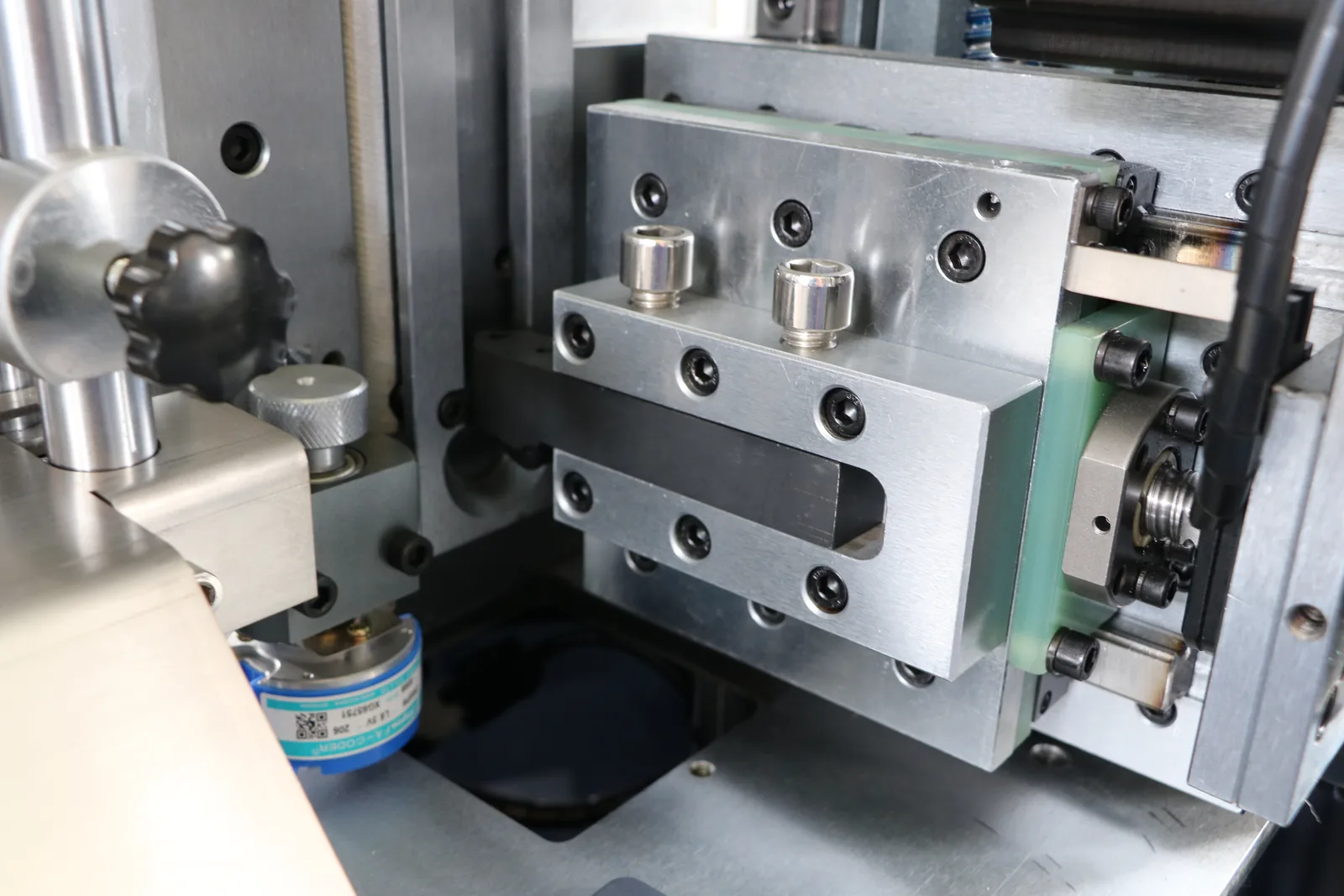

Bending actuator and forming area
The model-specific detail shows the working area associated with the documented servo dual-blade alternating-bending process.
Finished flat-metal sample
The source photo shows a formed and punched flat-metal return sample. It demonstrates the application type, not guaranteed performance for every grade or finish; send your own file and material details for a test.
DELIVERY AND SUPPORT
Delivery, Warranty & Training
Warranty, training, dispatch, and export terms are line-wide and are written on Why Us.
Delivery
Standard configurations are prepared for dispatch on the schedule written in your quotation.
Warranty and CE marking
The 1-year warranty, lifetime technical support, and CE marking are line-wide; details are on Why Us.
Training and OEM/ODM
Training is at the factory, on site, or remote; standard OEM starts from 1 unit on a documented SENQ series, and ODM requests go through engineering review (OEM / ODM).
FM SERIES FAQ
Questions to Answer Before You Order
What is the main difference between FM130 and FM220?
The documented model difference is side height. FM130 covers 20–130 mm, while FM220 covers 20–220 mm. The current sheets list the same material, thickness, radius, drive, utility, footprint, and weight values for both; confirm the supplied configuration in the quotation.
Which materials are documented, and when should we compare another series?
Flat stainless steel, galvanized sheet, iron, and flat aluminum from 0.3 to 1.2 mm thick are listed. Compare MM for a broader multi-material channel-letter platform, or NF220 when the main requirement is flat-aluminum tooth notching, edge folding, arc bending, and cutoff up to 220 mm. Send the exact grade, finish, and return construction so SENQ can verify the series.
Does the FM Series include automatic punching?
The current FM130 and FM220 sheets list standard automatic punching together with mechanical-gripper feeding, servo planer slotting, and servo dual-blade alternating bending. Confirm the required hole pattern and final tooling scope from your file.
What should we send for a feasibility review?
Send a representative file with the metal grade, thickness, side height, surface finish, minimum radius, and punching or slotting requirements. SENQ will review feasibility and confirm any required material or tooling validation in the quotation.
