AP130
Aluminum Channel Letter Bender
AP130 feeds, slots, and bends documented aluminum profiles, flat aluminum, folding coil, and Channelume for side heights up to 130 mm.
Side height
Material thickness
Minimum bending radius
Total power
BUYER DECISION & FIT
AP130: Does This Aluminum Bender Fit Your Shop?
Start with application fit, then confirm the exact material, geometry, tooling, and delivery scope in the quotation. For series choice and file preparation, review Material Guide and File Preparation before sending your aluminum profile or coil details. General return bending that lists this series is on Standard Channel Letter Bending. The Channel Letter Bender Price Comparison lists documented limits for all 11 models.
Best for
Aluminum profiles, flat aluminum, folding coil, and Channelume within the documented 0.3–1.2 mm thickness and up-to-130 mm processing range.
Confirm the working range
Check the profile or coil geometry, thickness, side height, and minimum 7 mm bending radius, then submit the actual file for tooling review.
SPECIFICATIONS
AP130 Technical Parameters
Values below come from the supplied AP130 model sheet. Confirm the exact profile geometry and aluminum condition before ordering. How to read side height is on the Channel Letter Bender Price Comparison. This series does not promise a side height below 20 mm.
AP130
- Side height
- Up to 130 mm
- Application materials
- Aluminum profile, flat aluminum, folding coil, and Channelume
- Minimum bending radius
- R >= 7 mm
- Material thickness
- 0.3-1.2 mm
- Main process
- Automatic feeding, slotting, and bending
- Control workflow
- Five-axis forming with closed-loop correction
- Total power
- 1000 W
- Machine size
- 2440 x 840 x 1420 mm
- Weight
- 260 kg
- Voltage
- 220 V
- Working air pressure
- 0.3-0.8 MPa
- Deviation from drawing
- Under 0.1 mm
- Slotting angle
- 45°–135°
- Supported file formats
- DXF, AI, PLT
- Included computer
- Ships with a computer; software installed and parameters set.
MACHINE EVIDENCE
See the AP130 Forming Line
These machine-detail images were prepared from the supplied AP130 product documentation rather than generic control-panel or clamp illustrations.
Aluminum bending tool
The documented forming tool supports the bending stage for aluminum profiles, flat aluminum, folding coil, and Channelume returns.
Milling-cutter station
This source image shows the cutter used in the integrated slotting stage before the aluminum return is bent.

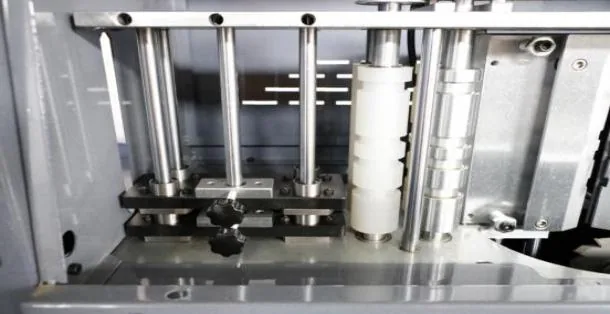

Feed, cutting, and roller assembly
The supplied detail shows the material path and the mechanical stages that move and prepare the aluminum input for forming.
Guide and drive mechanism
The guide-and-drive assembly supports controlled material movement through the documented automatic workflow.
DELIVERY AND SUPPORT
Delivery, Warranty & Training
Warranty, training, dispatch, and export terms are line-wide and are written on Why Us.
Delivery
Standard configurations are prepared for dispatch on the schedule written in your quotation.
Warranty and CE marking
The 1-year warranty, lifetime technical support, and CE marking are line-wide; details are on Why Us.
Training and OEM/ODM
Training is at the factory, on site, or remote; standard OEM starts from 1 unit on a documented SENQ series, and ODM requests go through engineering review (OEM / ODM).
FAQ
AP130 Questions Before You Request a Quote
Which materials does AP130 process?
The product specification lists aluminum profiles, flat aluminum, folding coil, and Channelume. It does not document AP130 as a stainless-steel machine.
What working range is documented?
The stated limits are up to 130 mm side height, 0.3-1.2 mm material thickness, and a minimum bending radius of 7 mm.
Which production steps are integrated?
The product specification documents automatic feeding, slotting, and bending, plus five-axis forming and closed-loop correction.
REQUEST AP130 PRICING
Confirm AP130 for Your Production File
Tell us your aluminum form, profile or coil geometry, thickness, side height, minimum radius, and a representative file. The quotation will confirm AP130 tooling, other accessories, utilities, support scope, and commercial terms. Submit the form to send these requirements securely to SENQ CNC; share files only after a confirmed email or WhatsApp conversation.
